Leveraging the inherent properties of graphite, this heat exchanger's rectangular hole pattern provides exceptional thermal conductivity and chemical inertness. The design promotes efficient fluid flow, resulting in a durable, efficient, and reliable solution for industrial heat exchange.
Numéro d'article :
JKCommande (MOQ) :
1Paiement :
Alipay L/C T/T westernunion PaypalOrigine du produit :
ChinaCouleur :
CustomizedPort d'expédition :
shanghaiDélai de mise en œuvre :
please contact 504893184@qq.comPoids :
please contact CP +8613696510409Matériel :
GraphiteTempérature de travail :
-30 to 150 ℃Pression de travail :

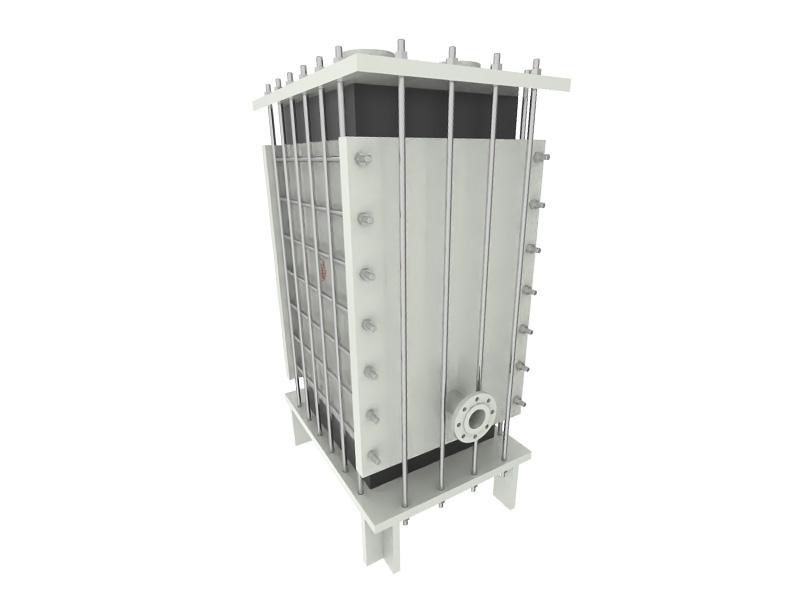

≤0.3 MpaRectangular Hole Type Graphite Heat Exchanger
The sealing system integrates three key components: a graphite head, a one-piece graphite heat exchanger block, and a sealing hot plate. Due to its seamless, monolithic design, the exchanger block exhibits high structural strength and excellent shock resistance by withstanding pressure as a complete unit. Meanwhile, the water-side plate is fabricated as a casting, allowing for straightforward repair, assembly, and disassembly.
Product Advantages
The Rectangular Hole Type Graphite Heat Exchanger offers excellent heat transfer performance, superior resistance to chemical corrosion, even fluid distribution, a large surface area for heat exchange, strong mechanical durability, stable operation, easy maintenance, and an extended service lifespan.

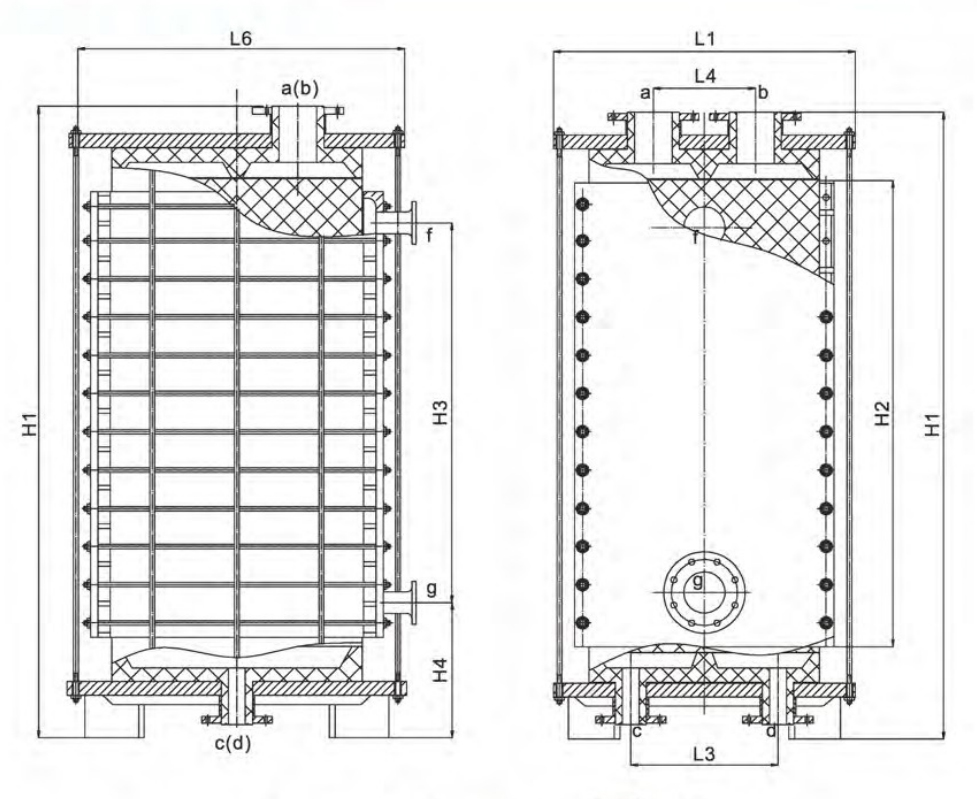

Structural Diagram
| Parts details | |
| 1 | Liquid inlet |
| 2 | Upper cover plate |
| 3 | Graphite upper head |
| 4 | Graphite upper tube sheet |
| 5 | Intake |
| 6 | Graphite baffle |
| 7 | Graphite heat exchange tube |
| 8 | Equipment shell |
| 9 | Outfall |
| 10 | Graphite lower tubesheet |
| 11 | Lower sealing plate |
| 12 | Lower sealing plate |
| 13 | Q235 lower cover plate |
| 14 | Equipment foot |
L'échangeur de chaleur à calandre et tubes en graphite à tête flottante GH est un dispositif de transfert de chaleur très fiable et efficace. Il est composé de tubes, d'une tête flottante, d'une calandre et d'autres pièces.
Leveraging the inherent properties of graphite, this heat exchanger's rectangular hole pattern provides exceptional thermal conductivity and chemical inertness. The design promotes efficient fluid flow, resulting in a durable, efficient, and reliable solution for industrial heat exchange.
